Sprayable Foam Genius

PU foam with Genius applicator

SPRAYABLE INSULATION FOAM is a ready-to-use, single component, self-expanding polyurethane spray foam for insulating all types of substrates to improve thermal insulation and reduce the risk of thermal bridges. Equipped with our patented Genius Gun applicator system for maximum control and single handed application. With accompanying spray nozzle, SPRAYABLE INSULATION FOAM can be used for horizontal and vertical application to insulate irregular surfaces and hard to reach places.

Shown product

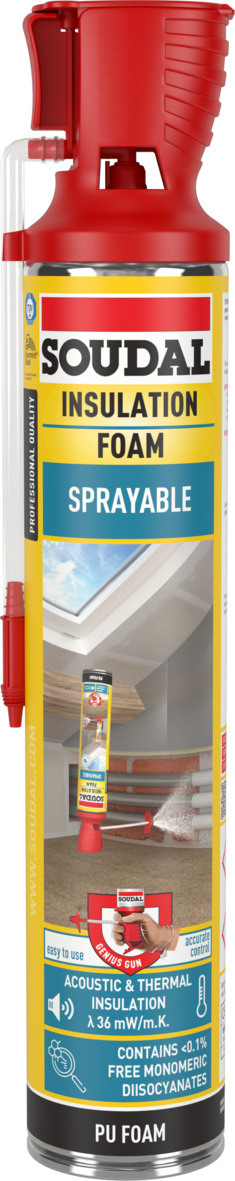

Sprayable Foam Genius 700ml

Applications

Covering of all types of surfaces to improve thermal insulation
Insulating all inconvenient or hard to reach places in construction applications, where the use of traditional insulation materials is more difficult
Suitable as insulation on all usual building substrates (such as concrete, masonry, stone, wood, EPS, drywall, most metal sheeting, gypsum boards, hard PVC, etc)
Sealing of doors, lintels, walls, ceilings and other construction parts to reduce the risk of thermal bridges
Insulating pipes, attics, cellars, balconies, garages, tanks and vessels

Featured properties

Excellent initial bonding onto surface
Good adhesion on all surfaces (except PE, PP and PTFE)
One foam can covers up to 1 m² of insulation (ca. 2 cm layer after curing)
Suitable for vertical and horizontal applications
Excellent thermal insulation, thermal conductivity of 0,036 W/m.K.
Reduces the risk of thermal bridges
Remains flexible, does not become brittle
Levels uneven and hard to reach surfaces
Sealing all hard to reach parts in construction applications
Less than 0,1% free diisocyanate content

Assets

Main image

DoP

DoP 231922 Soudal, Sprayable Foam Genius, English

Technical data sheet

TDS Soudal, Sprayable Foam Genius, English

Instructions

Prior to using the product, cover all adjacent areas for protection against soiling. Good ventilation must be ensured for indoor use. Shake the aerosol can for at least 20 seconds. Open the cover and fold the tube horizontally. The application nozzle is already attached on the tip of the Soudamax adapter. Surface should be free from grease and dust. Moisten surfaces with a water sprayer prior to application. For non-conventional substrates a preliminary adhesion test is recommended. Rotate the nozzle as needed (for vertical or horizontal application). Press completely on the trigger of the Genius adapter for optimal foam output. Apply the foam from a distance of 30-40 cm from the surface. The application distance will determine the width of the application area. The foam will expand twice the thickness of what is sprayed out. Do not apply more than three layers of around 1 cm at once, or do not exceed a thickness of 2,5 cm at once. If more layers are needed, wait for approx. 30 minutes to apply the next layer. Moisten after each layer. For storage: remove the nozzle from the Soudamax adapter and clean the nozzle, detach the bung and screw the bung on the tip of Soudamax adapter. Repeat shaking of the can after periods of non-use. Fresh foam can be removed using Soudal Gun & Foamcleaner or acetone. Prior to using the Gun & Foamcleaner, test whether surfaces are affected or not. Especially plastics and lacquer or paint layers can be sensitive to this. Cured foam can only be removed mechanically or with Soudal PU Remover.
